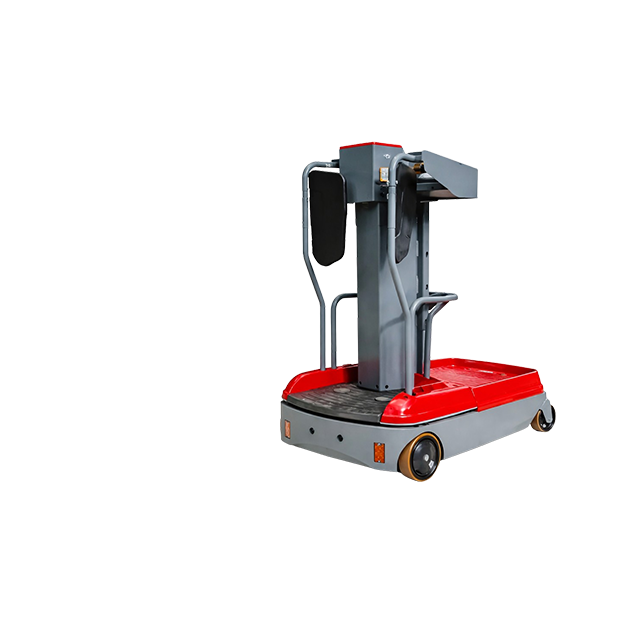

The JAC OPSM is a compact electric vertical order picker designed for stock picking, inspection, maintenance and installation work in stores, warehouses and other facilities. It is built for first- and second-level picking and occasional elevated work, with a 330 lb (150 kg) platform capacity, 118 in (2,995 mm) lift, a compact 51.2 in turning radius and a 24V / 105Ah battery system.
The OPSM uses a narrow 750 mm body to move through tight shop and warehouse aisles. Configurations are available with a walk-on loading platform or auxiliary lift, and the truck can be set up for free travel or guided applications depending on the operation.
Why choose the JAC OPSM
- Compact footprint: Narrow body and tight turning radius support work in confined aisles and through low doorways.
- Elevated picking: Designed for first- and second-level order picking and occasional work at height.
- 330 lb platform capacity: Rated for up to 150 kg.
- 118 in lift: 2,995 mm lifting height for elevated picking and service tasks.
- 24V battery system: 24V / 105Ah electrical system.
- Operator safety features: Safety gate, hand sensor and easy-control features support controlled operation.
Technical specifications
| Model | OPSM |
|---|---|
| Rated capacity | 330 lb / 150 kg |
| Lift height | 118 in / 2,995 mm |
| Travel speed, loaded / unloaded | 2.8 / 2.8 mph (4.5 / 4.5 km/h) |
| Turning radius | 51.2 in / 1,300 mm |
| Battery | 24V / 105Ah |
| Body width | Approx. 29.5 in / 750 mm |
Best-fit applications
The OPSM is suited to retail stock picking, warehouse replenishment, inspection, maintenance and installation work where operators need a compact powered platform for low- to mid-level elevated tasks.
Request OPSM pricing from HaulPro
HaulPro will help confirm operating height, aisle width, platform requirements, guidance method, battery and charging requirements, delivery and current availability. Call (845) 935-0040 for a quote.
