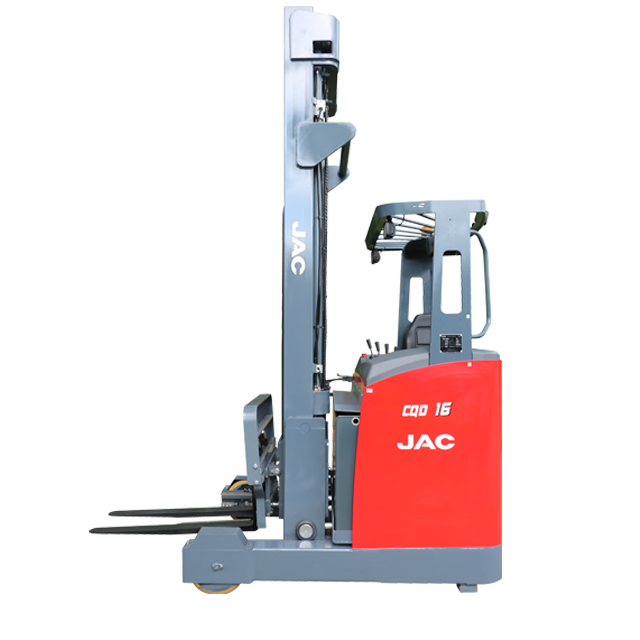

The JAC CQD16-LI is a lithium-powered seated reach truck engineered for high-density warehousing and elevated pallet handling. It combines a 3,500 lb (1,600 kg) rated capacity, lift heights up to 437 in (11,100 mm), 8.7 mph travel speed, a compact 67.7 in turning radius and an 80V / 250Ah battery system for demanding warehouse and logistics applications.
Why choose the JAC CQD16-LI
- 3,500 lb rated capacity: 1,600 kg at a 600 mm load center.
- High-lift capability: Mast configurations up to 437 in / 11,100 mm.
- Strong residual capacity: 1,600 kg through 6,200 mm lift and 800 kg at 11,100 mm.
- 80V lithium system: 80V / 250Ah battery.
- High travel speed: 8.7 mph / 14 km/h loaded or unloaded.
- Compact maneuvering: 67.7 in / 1,720 mm turning radius.
- Operator-focused controls: Adjustable steering wheel, fingertip controls, multi-function display and adjustable operating platform.
Core specifications
| Model | CQD16-LI |
|---|---|
| Operator type | Seated reach truck |
| Rated capacity | 3,500 lb / 1,600 kg |
| Load center | 23.6 in / 600 mm |
| Maximum lift height | 437 in / 11,100 mm |
| Travel speed, loaded / unloaded | 8.7 / 8.7 mph (14 / 14 km/h) |
| Turning radius | 67.7 in / 1,720 mm |
| Battery | 80V / 250Ah |
| Drive motor | 11 kW |
| Lift motor | 20 kW |
| Sound pressure at operator | 65 dB(A) |
Dimensions and aisle requirements
| Overall length | 95.3 in / 2,420 mm |
|---|---|
| Overall width | 50.0 in / 1,270 mm |
| Overhead guard height | 86.6 in / 2,200 mm |
| Wheelbase | 58.1 in / 1,475 mm |
| Reach distance | 23.6 in / 600 mm |
| Fork dimensions | 40 × 100 × 1,070 mm |
| Aisle width, 1000 × 1200 pallet crossways | 109.8 in / 2,790 mm |
| Aisle width, 800 × 1200 pallet lengthways | 111.8 in / 2,840 mm |
Lift height and residual capacity
| Lift height | Residual capacity |
|---|---|
| 5,000 mm | 1,600 kg |
| 6,200 mm | 1,600 kg |
| 7,400 mm | 1,350 kg |
| 8,000 mm | 1,300 kg |
| 8,600 mm | 1,250 kg |
| 9,500 mm | 1,050 kg |
| 10,200 mm | 950 kg |
| 10,750 mm | 900 kg |
| 11,100 mm | 800 kg |
Available equipment
Available equipment includes an adjustable steering wheel, fingertip operation, multi-function instruments, adjustable operating platform, one-click centering, horizontal fork positioning, additional camera system, built-in charger, rubber drive tire, overhead-guard roof and lighting configurations.
Request CQD16-LI pricing from HaulPro
HaulPro will help confirm rack height, residual capacity, aisle width, load center, mast configuration, battery and charging requirements, options, delivery and current availability. Call (845) 935-0040 for a quote.
