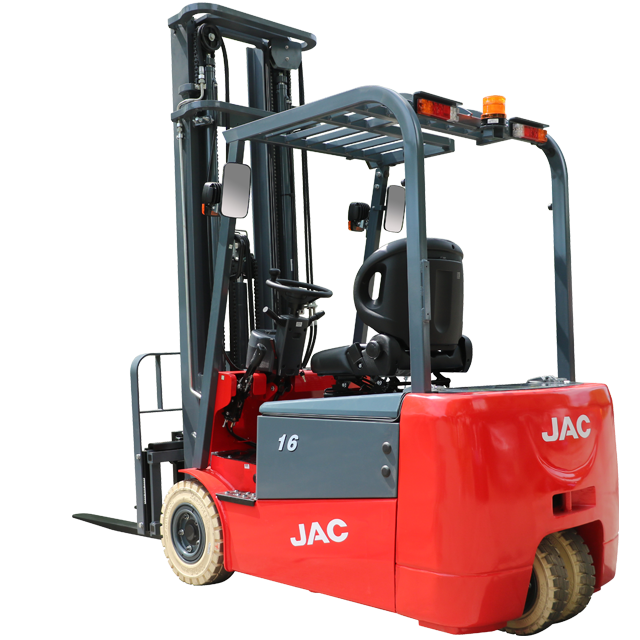

The JAC CPD16SA3–CPD20SA3 family combines compact three-wheel maneuverability with lithium-electric performance for intensive warehouse and material-handling applications. The range covers 3,500 to approximately 4,400 lb capacity and uses a compact swivel-steering layout to work efficiently in tighter aisles and congested operating areas.
JAC equips the SA3 platform with dual front-wheel motor drive, a ZF gearbox, side-access battery design and IPX4 protection for broader operating flexibility. The integrated lithium battery layout also increases operator legroom and allows a larger, lower entry step.
Model comparison
| Model | Rated capacity | Lift | Travel speed loaded / unloaded | Battery | Minimum right-angle stacking aisle |
|---|---|---|---|---|---|
| CPD16SA3 | 3,500 lb / 1,600 kg | 118 in / 3,000 mm | 8.7 / 8.7 mph (14 / 14 km/h) | 48V / 500Ah | 120.9 in / 3,070 mm |
| CPD18SA3 | 4,000 lb / 1,800 kg | 118 in / 3,000 mm | 8.7 / 8.7 mph (14 / 14 km/h) | 48V / 500Ah | 120.9 in / 3,070 mm |
| CPD20SA3 | Approx. 4,400 lb / 2,000 kg | 118 in / 3,000 mm | 8.1 / 8.1 mph (13 / 13 km/h) | 48V / 560Ah | 126.8 in / 3,220 mm |
Why choose the JAC SA3 series
- Compact three-wheel design: Built for maneuverability in tighter warehouse spaces.
- Dual front-wheel drive: JAC pairs dual drive motors with a ZF gearbox for strong traction and response.
- Integrated lithium platform: Eliminates the conventional battery-tray layout and creates more operator legroom.
- IPX4 protection: Supports operation in a broader range of working conditions.
- Service-friendly layout: Updated component placement improves heat dissipation and maintenance access.
- Configurable operator options: Available equipment includes seat variants, multifunction display and adjustable steering-column options.
Best-fit applications
The CPD16SA3–CPD20SA3 family is suited to warehouses, production facilities, loading areas and other operations that need frequent lifting and lowering with a compact electric counterbalance forklift.
Request SA3 pricing from HaulPro
HaulPro will help confirm capacity, mast height, aisle requirements, battery configuration, optional equipment, delivery and current availability. Call (845) 935-0040 for a quote.
