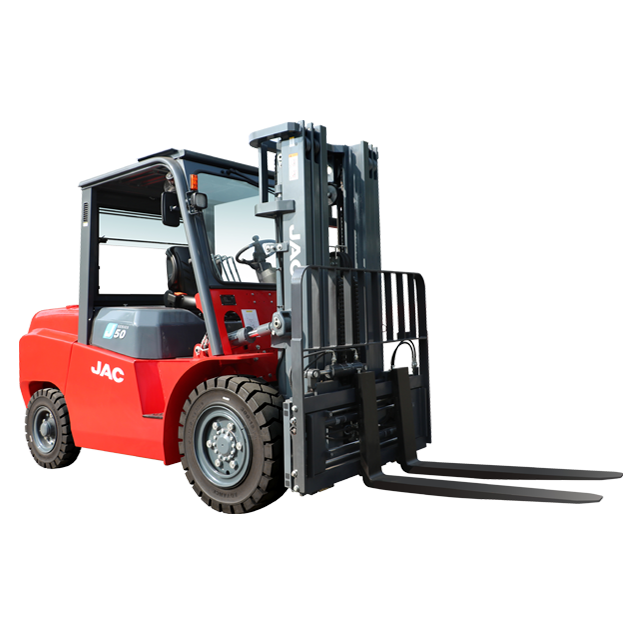

The JAC CPCD50J is a 5.0-ton diesel counterbalance forklift built for demanding material-handling work in factories, warehouses, stations, docks, airports and ports. It carries loads up to 11,000 lb (5,000 kg) and is designed for loading, unloading and transport of packaged goods. Optional attachments can expand the truck's use for bulk and unpackaged cargo.
The CPCD50J combines strong traction and gradeability with a soft-shift intelligent transmission, load-sensing steering and a dual-pump combined-flow hydraulic system. An intelligent instrument panel monitors forklift status in real time, while the large-opening hood and modular service layout are designed to simplify routine maintenance.
Why choose the JAC CPCD50J
- 11,000 lb capacity: Rated to handle loads up to 5,000 kg for heavy warehouse, dock and industrial applications.
- Flexible lift configurations: Standard lift height is 118 in (3,000 mm), with mast configurations available up to 197 in (5,000 mm).
- Heavy-duty performance: Strong acceleration, traction and gradeability support demanding material-handling cycles.
- Intelligent monitoring: The instrument panel provides real-time operating-status information for the operator.
- Smoother transmission: Soft-shift intelligent transmission is designed for more controlled operation.
- Efficient hydraulics: Load-sensing steering and a dual-pump combined-flow hydraulic system help reduce energy consumption.
- Durability validation: Key components and the complete machine are validated through CAE simulation analysis and 500-hour durability testing.
- Service access: A large-opening hood and modular maintenance layout provide easier access to key service items.
Core specifications
| Model | CPCD50J |
|---|---|
| Power type | Diesel |
| Rated capacity | 11,000 lb / 5,000 kg |
| Standard lift height | 118 in / 3,000 mm |
| Maximum available lift height | Up to 197 in / 5,000 mm |
| Travel speed, loaded / unloaded | 8.1 / 8.7 mph (13.0 / 14.0 km/h) |
| Engine | Yuchai diesel |
| Emissions | Euro V |
Best-fit applications
The CPCD50J is designed for heavy loading and unloading in factories, warehouses, freight areas, docks, airports, stations and ports. With the appropriate attachment, it can also be configured for bulk or unpackaged loads that require more than standard forks.
Request CPCD50J pricing from HaulPro
HaulPro will help confirm mast and lift height, fork and attachment requirements, operating environment, engine and emissions configuration, delivery and current availability. Call (845) 935-0040 for a quote.
