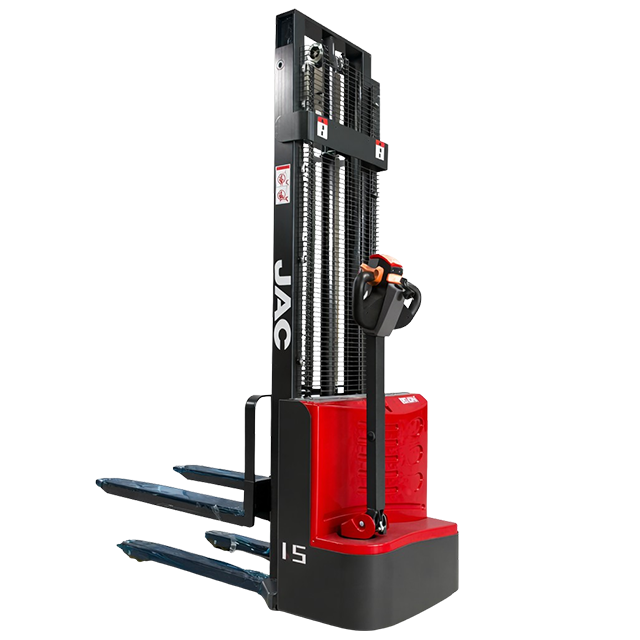

The JAC CDD15 is a compact walkie electric pallet stacker built for lifting, stacking and short-distance pallet transport in warehouses, production facilities, stockrooms and retail supply areas. With a rated capacity of 3,300 lb (1,500 kg), lift heights available up to 158 in (4,000 mm), a tight 52.8 in turning radius and a compact 31.3 in overall width, it is designed for operations where aisle space is limited but powered lifting is still required.
The CDD15 combines powered travel and lift with pedestrian control, polyurethane wheels, electromagnetic braking and a 24V battery system. JAC also equips the truck with high-strength forks, a built-in charger, automatic lift limiting, an emergency reverse device and an emergency brake switch.
Why choose the JAC CDD15
- 3,300 lb rated capacity: Handles loads up to 1,500 kg for common warehouse and production stacking tasks.
- Lift heights up to 158 in: Multiple mast configurations are available from 63.0 to 157.5 in (1,600 to 4,000 mm).
- Compact footprint: 31.3 in overall width and 52.8 in turning radius support work in tight aisles and confined storage areas.
- Pedestrian operation: Walkie controls keep the truck compact while reducing manual lifting and pallet movement.
- Built-in charging: Integrated charging support simplifies day-to-day battery management.
- Safety-focused controls: Emergency reverse, emergency brake switch and automatic lift limiting support controlled operation.
Core specifications
| Model | CDD15 |
|---|---|
| Power / operator type | Electric / pedestrian walkie |
| Rated capacity | 3,300 lb / 1,500 kg |
| Load center | 23.6 in / 600 mm |
| Maximum lift height | Up to 157.5 in / 4,000 mm |
| Turning radius | 52.8 in / 1,342 mm |
| Travel speed, loaded / unloaded | 2.5 / 2.6 mph (4.0 / 4.2 km/h) |
| Gradeability, loaded / unloaded | 6% / 8% |
| Battery | 24V system: 2 × 12V / 100Ah |
| Service brake | Electromagnetic |
| Drive control / steering | DC power / mechanical steering |
| Noise at operator's ear | 69 dB(A) |
Dimensions and handling
| Overall length | 68.5 in / 1,740 mm |
|---|---|
| Overall width | 31.3 in / 795 mm |
| Length to fork face | 23.2 in / 590 mm |
| Wheelbase | 45.9 in / 1,167 mm |
| Lowered fork height | 3.4 in / 86 mm |
| Fork dimensions | 2.4 × 6.3 × 45.3 in (60 × 160 × 1,150 mm) |
| Overall fork width | 22.4 or 27.4 in (570 or 695 mm) |
| Minimum ground clearance | 1.0 in / 26 mm |
| Aisle width, 1,000 × 1,200 mm pallet across forks | 81.7 in / 2,074 mm |
| Aisle width, 800 × 1,200 mm pallet along forks | 80.3 in / 2,040 mm |
Available lift-height configurations
| Lift height | Rated capacity at maximum height |
|---|---|
| 63.0 in / 1,600 mm | 3,300 lb / 1,500 kg |
| 78.7 in / 2,000 mm | 2,866 lb / 1,300 kg |
| 98.4 in / 2,500 mm | 2,425 lb / 1,100 kg |
| 118.1 in / 3,000 mm | 1,984 lb / 900 kg |
| 129.9 in / 3,300 mm | 1,764 lb / 800 kg |
| 137.8 in / 3,500 mm | 1,543 lb / 700 kg |
| 157.5 in / 4,000 mm | 661 lb / 300 kg |
Drive and wheel specifications
| Drive motor | 0.75 kW, 60-minute rating |
|---|---|
| Lift motor | 2.2 kW at S3 15% |
| Lifting speed, loaded / unloaded | 92 / 136 mm/s |
| Lowering speed, loaded / unloaded | 112 / 98 mm/s |
| Wheel material | Polyurethane |
| Drive wheel | Ø210 × 70 mm |
| Load wheels | Ø80 × 70 mm |
| Stabilizer wheels | Ø115 × 55 mm |
Best-fit applications
The CDD15 is well suited for pallet stacking, shelf replenishment, production support, supply zones, warehouse staging and compact storage areas where a pedestrian stacker offers better maneuverability than a larger rider truck. Its available mast heights let HaulPro configure the truck around the customer's actual rack height and residual-capacity requirements.
Request CDD15 pricing from HaulPro
HaulPro will help confirm mast height, residual capacity, fork width, pallet dimensions, battery and charging requirements, operating environment, delivery and current availability. Call (845) 935-0040 for a quote.
Download the official JAC CDD15 datasheet
Specifications are based on JAC Forklift USA's current CDD15 product page and official datasheet. Available capacity decreases as lift height increases. Final mast, battery and equipment configuration are confirmed in the written HaulPro quotation.
