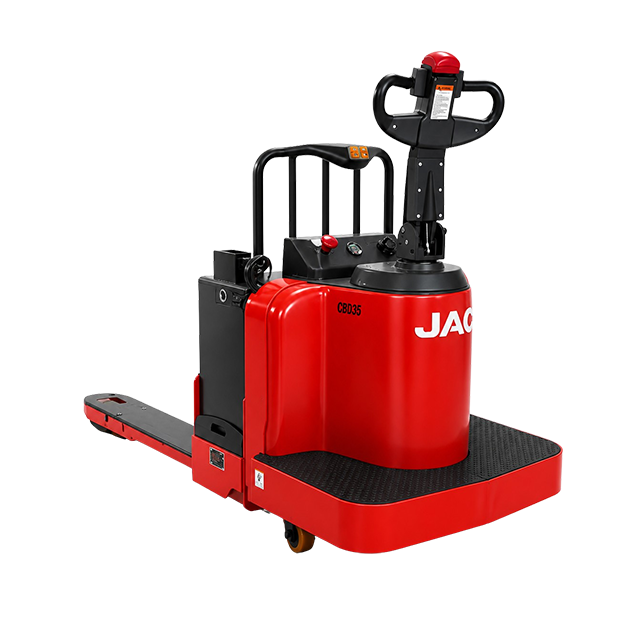

The JAC CBD35 is a heavy-duty 7,000 lb (3,500 kg) electric pallet truck built for rapid short-distance transport of heavy pallet loads. Its rugged steel chassis, 24V / 360Ah battery system and compact maneuvering characteristics make it well suited to truck loading bays, warehouses, production areas and other high-throughput material-handling environments.
The CBD35 family is available in two rider configurations and one walkie configuration, allowing HaulPro to match the truck to travel distance, aisle space and operator requirements.
CBD35 model comparison
| Model | Operator type | Capacity | Lift | Travel speed loaded / unloaded | Turning radius | Battery |
|---|---|---|---|---|---|---|
| CBD35-510 | Rider | 7,000 lb / 3,500 kg | 9.1 in / 230 mm | 6.8 / 8.7 mph (11.0 / 14.0 km/h) | 106.6 in / 2,708 mm | 24V / 360Ah |
| CBD35-520 | Rider | 7,000 lb / 3,500 kg | 9.1 in / 230 mm | 6.8 / 8.7 mph (11.0 / 14.0 km/h) | 86.2 in / 2,190 mm | 24V / 360Ah |
| CBD35-530 | Walkie | 7,000 lb / 3,500 kg | 9.1 in / 230 mm | 2.5 / 2.8 mph (4.0 / 4.5 km/h) | 80.7 in / 2,051 mm | 24V / 360Ah |
Why choose the JAC CBD35
- 7,000 lb capacity: Built for demanding pallet transport where standard light-duty pallet trucks are undersized.
- Rider and walkie options: Choose the configuration that best matches travel distance and operator workflow.
- Electronic power steering: Supports controlled maneuvering of heavy loads.
- AC drive system: JAC pairs the AC drive with a patented floating-body design.
- Automatic curve speed reduction: Helps improve stability and control while turning.
- Stepless speed control: Includes emergency reverse and emergency brake functions.
- Side-access battery: Designed to simplify battery access and service.
- Automatic lift limiting and load backrest: Standard features for controlled pallet handling.
Best-fit applications
The CBD35 is designed for rapid movement of heavy pallets over short distances in loading bays, warehouses, production facilities and distribution operations. The rider models are especially useful where operators travel repeatedly between staging points, while the walkie version is suited to tighter spaces and shorter moves.
Request CBD35 pricing from HaulPro
HaulPro will help select the correct rider or walkie configuration, confirm pallet dimensions, travel distance, operating environment, battery requirements, delivery and current availability. Call (845) 935-0040 for a quote.
