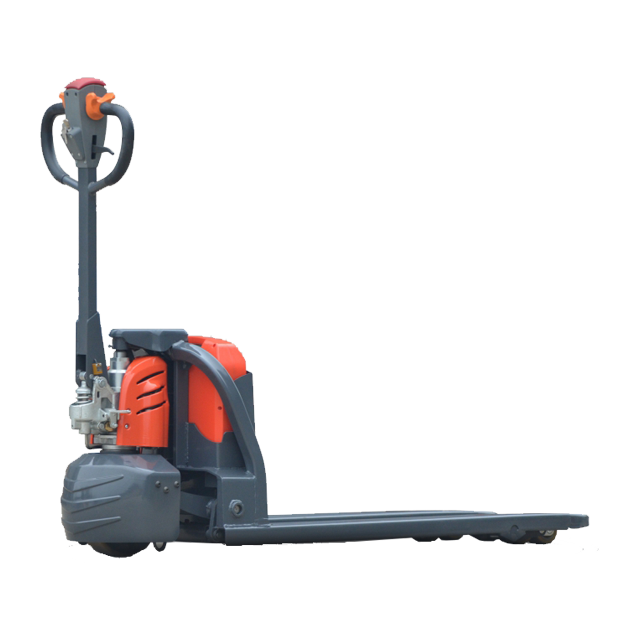

The JAC CBD15Li–CBD20Li series is a compact lithium-ion walkie electric pallet truck family designed to replace manual pallet jacks in warehouses, retail operations, production areas, delivery environments and confined workspaces. The series covers rated capacities from 1,500 to 2,000 kg, with compact turning radii, powered travel and lift, and portable lithium battery systems for convenient charging and replacement.
Its pedestrian design and compact chassis make the CBD15Li, CBD18Li and CBD20Li well suited to narrow aisles, stockrooms, truck loading areas and short-distance pallet transport where maneuverability and reduced operator effort are important.
CBD15Li–CBD20Li model comparison
| Model | Rated capacity | Lift | Travel speed loaded / unloaded | Turning radius | Battery |
|---|---|---|---|---|---|
| CBD15Li | 3,300 lb / 1,500 kg | 7.9 in / 200 mm | 2.6 / 2.8 mph (4.2 / 4.5 km/h) | 55.3 in / 1,405 mm | 24V / 60Ah lithium |
| CBD18Li | 4,000 lb / 1,800 kg | 7.9 in / 200 mm | 2.6 / 2.8 mph (4.2 / 4.5 km/h) | 55.0 in / 1,398 mm | 24V / 60Ah lithium |
| CBD20Li | Approx. 4,400 lb / 2,000 kg | 7.9 in / 200 mm | 2.6 / 2.8 mph (4.2 / 4.5 km/h) | 55.0 in / 1,398 mm | 48V / 30Ah lithium |
Why choose the JAC lithium pallet truck series
- Compact for confined spaces: Small turning radii help the trucks maneuver in narrow aisles and tight curves.
- Full metal cover: Rugged body construction protects key components during commercial use.
- Portable lithium battery: Designed for convenient battery removal and replacement.
- Integrated control handle: Combined switch and battery meter put key operating information within easy reach.
- Low-voltage protection: Helps prevent excessive battery discharge.
- Powered alternative to manual pallet jacks: Reduces the physical effort required to move palletized loads over short distances.
Dimensions and operating specifications
| Specification | CBD15Li | CBD18Li | CBD20Li |
|---|---|---|---|
| Load center | 23.6 in / 600 mm | 23.6 in / 600 mm | 23.6 in / 600 mm |
| Wheelbase | 48.9 in / 1,243 mm | 48.9 in / 1,243 mm | 48.9 in / 1,243 mm |
| Overall length | 63.6 in / 1,615 mm | 63.1 in / 1,603 mm | 63.1 in / 1,603 mm |
| Overall fork width | 21.7 or 27.0 in / 550 or 685 mm | 21.7 or 27.0 in / 550 or 685 mm | 21.7 or 27.0 in / 550 or 685 mm |
| Fork dimensions | 50 × 150 × 1,150 mm | 50 × 150 × 1,150 mm | 50 × 150 × 1,150 mm |
| Lowered fork height | 3.3 in / 85 mm | 3.3 in / 85 mm | 3.3 in / 85 mm |
| Service weight with battery | 156 kg | 142 kg | 146 kg |
Drive, braking and wheels
- Electric pedestrian operation
- 0.75 kW drive motor
- 0.8 kW lift motor
- Electromagnetic service brake
- Polyurethane wheels
- Mechanical steering
- Operator noise level at or below 70 dB(A)
Best-fit applications
These compact JAC lithium pallet trucks are a strong fit for retail receiving, stockrooms, warehouse staging, production support, delivery operations, truck loading and short-distance pallet movement where a manual pallet jack would require more operator effort.
