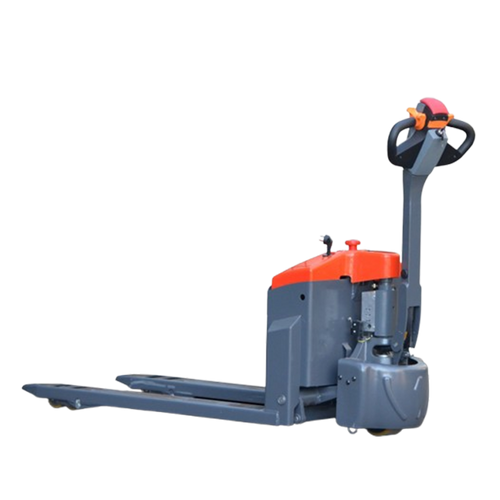

The JAC CBD15-III is a compact walkie electric pallet jack designed for ground-level pallet transport in warehouses, retail stockrooms, production areas and delivery operations. Its 3,300 lb capacity, 7.9 in lift and 56.1 in turning radius make it a powered alternative to a manual hand pallet truck when operators need to move pallets through narrow aisles and tight curves with less physical effort.
The CBD15-III uses a 24V lead-acid battery system with two 12V/75Ah batteries, polyurethane wheels, electromagnetic braking and walk-behind controls. Two available fork-width configurations support common pallet-handling requirements while preserving a compact footprint.
Why choose the JAC CBD15-III
- 3,300 lb capacity: Handles loads up to 1,500 kg for common warehouse, retail and production transport tasks.
- Compact maneuverability: A 56.1 in turning radius supports operation in confined aisles and tight corners.
- Reduced manual effort: Powered travel and lift relieve operators from physically demanding manual pallet movement.
- Low-lift pallet handling: Raises pallets 7.9 in for short-distance, ground-level transport.
- Two fork-width configurations: Available in 22.0 or 27.0 in overall fork widths.
- Controlled stopping: Electromagnetic service braking supports predictable walkie operation.
- Quiet electric operation: Operator-ear noise is rated at no more than 70 dB(A).
Core specifications
| Model | CBD15-III |
|---|---|
| Power / operator type | Electric / walkie |
| Rated capacity | 3,300 lb / 1,500 kg |
| Load center | 23.6 in / 600 mm |
| Lift height | 7.9 in / 200 mm |
| Lowered fork height | 3.3 in / 85 mm |
| Turning radius | 56.1 in / 1,425 mm |
| Travel speed, loaded / unloaded | 2.6 / 2.8 mph (4.2 / 4.5 km/h) |
| Gradeability, loaded / unloaded | 6% / 10% |
| Battery | 24V system: 2 × 12V / 75Ah lead-acid |
| Battery weight | 88 lb / 40 kg |
| Service brake | Electromagnetic |
| Drive control / steering | DC drive control / mechanical steering |
| Noise at operator's ear | ≤70 dB(A) |
Dimensions and pallet clearance
| Overall length | 64.1 in / 1,628 mm |
|---|---|
| Length to fork face | 18.8 in / 478 mm |
| Wheelbase | 49.7 in / 1,262 mm |
| Handle height | 24.1 / 47.0 in (612 / 1,195 mm) |
| Overall / fork width | 22.0 or 27.0 in (560 or 685 mm) |
| Fork dimensions | 2.0 × 5.9 × 45.3 in (50 × 150 × 1,150 mm) |
| Ground clearance | 1.4 in / 35 mm |
| Aisle width, 1,000 × 1,200 mm pallet across forks | 72.1 in / 1,831 mm |
| Aisle width, 800 × 1,200 mm pallet along forks | 74.1 in / 1,881 mm |
| Service weight with battery | Approx. 425 / 441 lb (193 / 200 kg), depending configuration |
Drive and wheel specifications
| Drive motor | 0.75 kW, 60-minute rating |
|---|---|
| Lift motor | 0.8 kW at S3 15% |
| Lifting speed, loaded / unloaded | 22 / 25 mm/s |
| Lowering speed, loaded / unloaded | 38 / 28 mm/s |
| Wheel material | Polyurethane |
| Drive wheel | Ø210 × 70 mm |
| Load wheels | Ø80 × 60 mm |
Best-fit applications
The CBD15-III is suited to short-distance pallet movement in retail receiving areas, production facilities, warehouses, stockrooms, loading zones and city-delivery operations where a manual pallet jack creates unnecessary physical strain or limits handling speed.
Request CBD15-III pricing from HaulPro
HaulPro will help confirm fork width, pallet dimensions, battery and charging requirements, operating environment, delivery and current availability. Call (845) 935-0040 for a quote.
